Linear Motion Bearings
⚙️ What Are Linear Motion Bearings?
Linear Motion Bearings are mechanical components designed to support and guide motion along a
straight path with
minimal friction.
They are widely used in
automation,
CNC machines,
robotics,
3D printers,
packaging equipment, and
precision instruments.
- 🔩 LM Series – basic straight cylindrical linear ball bearing
- 🛡️ Available with or without seals (e.g., UU sealed)
- ⚙️ Standard type for general linear guide applications
- 📏 Available Sizes: LM6UU, LM8UU, LM10UU, LM12UU, LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU

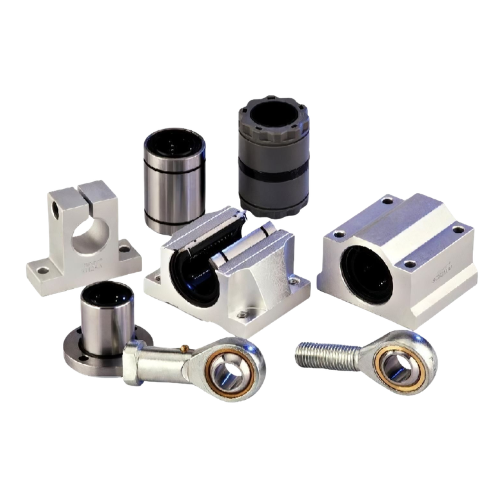

LM Bearing Variants (LUU, Flanged, Square & Oval Flange)
High Load Capacity
Stable Performance
Easy Mounting
Product Overview
Linear Motion Bearings are available in multiple configurations to suit different mounting
and load requirements. Variants such as LM-LUU (Long Type),
Flanged Bearings, Square Flange Bearings, and
Oval Flange Bearings offer improved stability, easier installation, and
reliable performance in precision linear motion systems.
and load requirements. Variants such as LM-LUU (Long Type),
Flanged Bearings, Square Flange Bearings, and
Oval Flange Bearings offer improved stability, easier installation, and
reliable performance in precision linear motion systems.
LM-L Series (Long / Extended Bearings – LUU)
- Same basic function as LM series with a longer body for higher load capacity
- Provides increased stability and better load distribution
- Identified with “LUU” suffix
- Available Sizes: LM10LUU, LM12LUU, LM16LUU, LM20LUU, LM25LUU, LM30LUU
Flanged Linear Bearings (LMF / LMF LUU)
- Bearings with an integral flange for easier and secure mounting
- Round flange: LMF series (e.g., LMF10UU)
- European version: LMEF series
- Ideal where bearings must be fixed without extra collars or brackets
- Standard Sizes: LMF8UU, LMF10UU, LMF12UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU
- Extra Long Sizes: LMF8LUU, LMF10LUU, LMF12LUU, LMF16LUU, LMF20LUU, LMF25LUU, LMF30LUU, LMF35LUU, LMF40LUU, LMF50LUU, LMF60LUU, LMF80LUU
Square Flange Bearings (LMK / LMK LUU)
- Square flange design for flat surface mounting
- LMK: standard metric square flange type
- LMEK: European equivalent
- Ideal for mounting directly against machine plates or sheets
- Standard Sizes: LMK8UU, LMK10UU, LMK12UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU
- Long Sizes: LMK8LUU, LMK10LUU, LMK12LUU, LMK16LUU, LMK20LUU, LMK25LUU, LMK30LUU, LMK35LUU, LMK40LUU, LMK50LUU, LMK60LUU, LMK80LUU
Oval Flange Bearings (LMH / LMH LUU)
- Oval-shaped flange for offset mounting hole configurations
- Suitable for special mounting requirements
- Available in standard and extra-long variants
- Standard Sizes: LMH8UU, LMH10UU, LMH12UU, LMH16UU, LMH20UU, LMH25UU, LMH30UU, LMH35UU, LMH40UU, LMH50UU, LMH60UU, LMH80UU
- Long Sizes: LMH8LUU, LMH10LUU, LMH12LUU, LMH16LUU, LMH20LUU, LMH25LUU, LMH30LUU, LMH35LUU, LMH40LUU, LMH50LUU, LMH60LUU, LMH80LUU
Need Help Choosing the Right LM Bearing?
Our team can help you select the ideal bearing type and size for your application.
